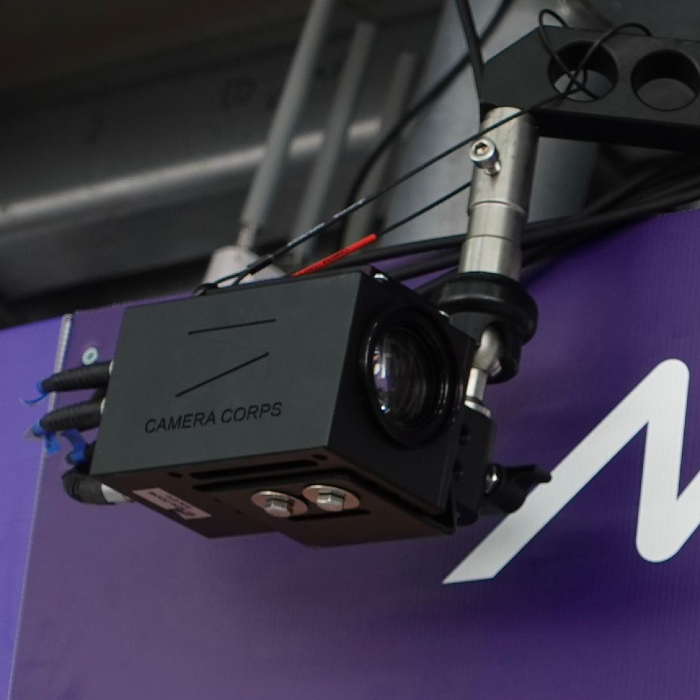

4K UHDTV camera module with x18 AF zoom. Features CIS original ISP, "Clairvu™", for superb imaging quality and high speed processing. AE, auto white balance, color correction, edge enhancement, noise reduction, gamma control, genlock, and other function can be controlled. Complies with BT.2020 and BT.2100(HLG).
Good for broadcasting, ROV, traffic surveillance, printing inspection, medical imaging, and other life science equipment and systems.
4K ClairvuTM SDI
Product Features
• 4K UHDTV 60p
• 3G SDI I/F (HD SDI supported)
• x18 AF zoom lens
• CIS original ISP "Clairvu™" for superb imaging quality
• Controllable with RS-232C and RS-422
• Gen Lock function (3-values analogue signals or black burst)
• LTC time code
• Edge enhancement, color correction, 3DNR (Invalid with square division mode)
• Complies with BT.709 and BT.2100 (HLG) gamma curve
• Complies with BT.709 and BT.2020 for color gamut
Technical
| Colour/Mono | Colour |
| Resolution | 3840 × 2160 |
| fps@Max. Resolution | 60 |
| Output Format | 4K UHDTV/1080p/1080i |
| Sensor Model Name | IMX334 |
| Shutter Type | Rolling Shutter |
| Imager Size | 1/1.8 CMOS |
| Effective Pixels | 3864 x 2180 |
| Pixel Size (μm) | 2.0 ×2.0 |
| Power Consumption | Typ. 13W |
| Power Requirement | DC+9～+15V |
| Min. Illumination | 0.7 lx |
| Sensitivity | F5.6 (2000lx) |
| Shutter Variable Range | 1/23.98s ～ 1/13600s |
| Interface | 3G SDI, HD-SDI |
| Lens Mount | Zoom lens installed |
| Weight (g) | 316 |
| Dimensions (W) x (H) x (D)mm | 65 × 66 × 98 |
